Modular Design Q345B Cool Roll Steel Plate Construction Site Lift
Construction Site Lift Main Parts
1. The gearing adopts imported bearing, enameled cable, and oil seal.
2. The electric parts adopt products from world renowned manufactures.
3. The racks and pinion adopts special material and heat-treatment technique, which prolong the life of these parts.
4. The steel structure uses quality steel from famous domestic manufactures.
5. The surface of the structure can apply paint-spray, parkerozing baking finish or hot galvanizing processing according to users requirements,
6. The cage can be produced and decorated by aluminum molded board, punched-plate or figured aluminm board.
Construction Site Lift Design
It is the truly modular rack and pinion hoist design, so the construction elevator drive devices and cars are generic and interchangeable.
Production and Materials
KANGBO implements the true modular design of construction rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Features and Advantages
* The Construction Site Lift runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
Construction Site Lift Parameters
| Technical Data | Construction Site Lift Rack and Pinion SC200/200BZ KP-B0708 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. |
Product Tags:
|
|

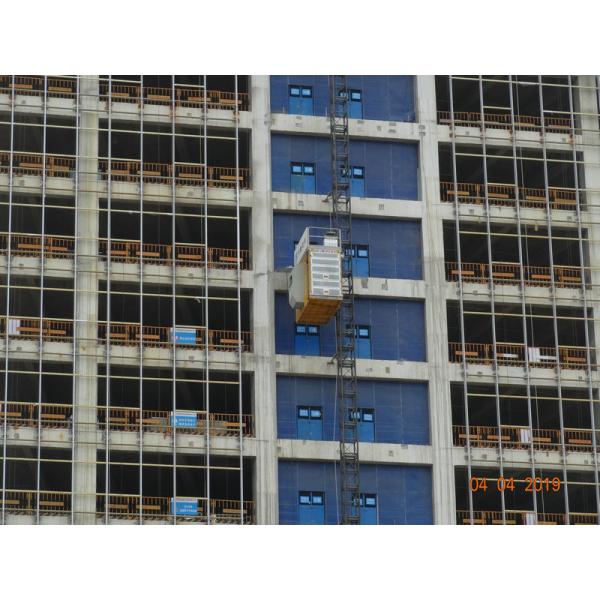

Modular Q345B Cool Roll Steel Plate 450m Construction Site Lift Images
|
